Soustruh FAHD KONTOUR 1200-1500 HYDRO

Kód: 805
0 Kč 0 Kč včetně DPH
Kategorie: Soustruhy na dřevo

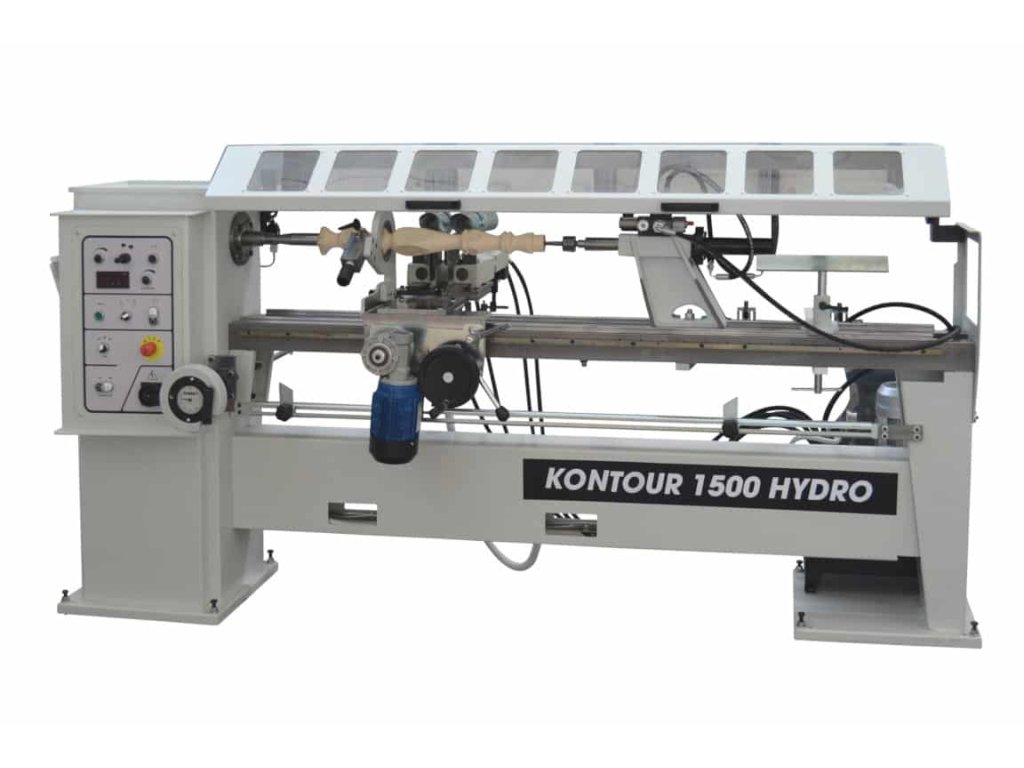

Lathe with Hydraulic Copying Device KONTOUR 1200 HYDRO – KONTOUR 1500 HYDRO

Technical data

KONTOUR 1200 HYDRO KONTOUR 1500 HYDRO
Distance between centres mm 1200 mm 1500
Height of centres over bed mm 240 mm 240
Max. turning diameter mm 460 (max. square mm 330) mm 460 (max. square mm 330)
Max turning diameter with copying device mm 200 (max. square mm 130) mm 200 (max. square mm 130)
Useful copying stroke mm 1100 mm 1400
Chuck speed rpm 900/1500/2100/2800 rpm 900/1500/2100/2800
Motor power HP 3 HP 3
Feed motor power HP 0,5 HP 0,5
Weight kg 450 kg 460



  • Hydraulic copying device with motorized feed
  • Copying tool
  • Gouge support mm 350
  • Chuck entrainer ø 25 mm
  • Rotating tailstock
  • Service spanners
  • Self-braking motor
  • Dust extraction hood ø 80 mm

UPON REQUEST



INVERTER 0-3500 RPM





MOTOR HP 5,5





DRILL CHUCK





SANDING PLATE WITH SMALL TABLE





MOVING STEADY WITH TOOL MAX. ADMITTED. Ø 100 MM (MAX. SQUARE 70 MM)





REDUCTION RINGS FROM 10 MM TO 70 MM





FIXED STEADY





SELF-CENTERING CHUCK 3 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 80 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 100 MM





SELF-CENTERING CHUCK 3 JAWS / Ø 125 MM





SELF-CENTERING CHUCK 4 JAWS / Ø 125 MM





DRIVING PLATE Ø MM 220





LONGER GOUGE SUPPORT WITH DOUBLE ATTACHMENT (MM 800)





TAPER FEEDER Ø MM 40-50-60





SCREW FEEDER Ø MM 100





COPYING TOOL





HANDTOOLS (NR.5 PCS)





PROFESSIONAL HANDTOOLS (NR.6 PCS)





DRAGGING CHUCK Ø MM 25





ROTATING TAILSTOCK Ø MM 40





HYDRAULIC TAILSTOCK





“V” DESIGN TOOL RADIUS 0,6-1-1,5-2





UPPER PROTECTION ON ALL THE LENGTH
