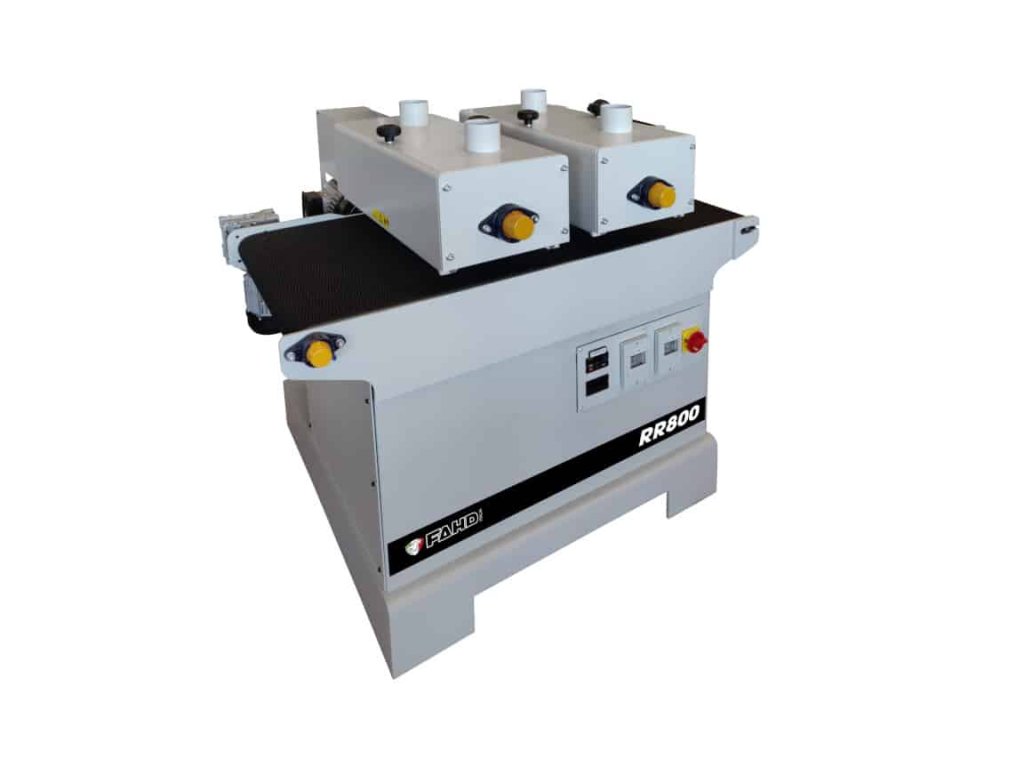

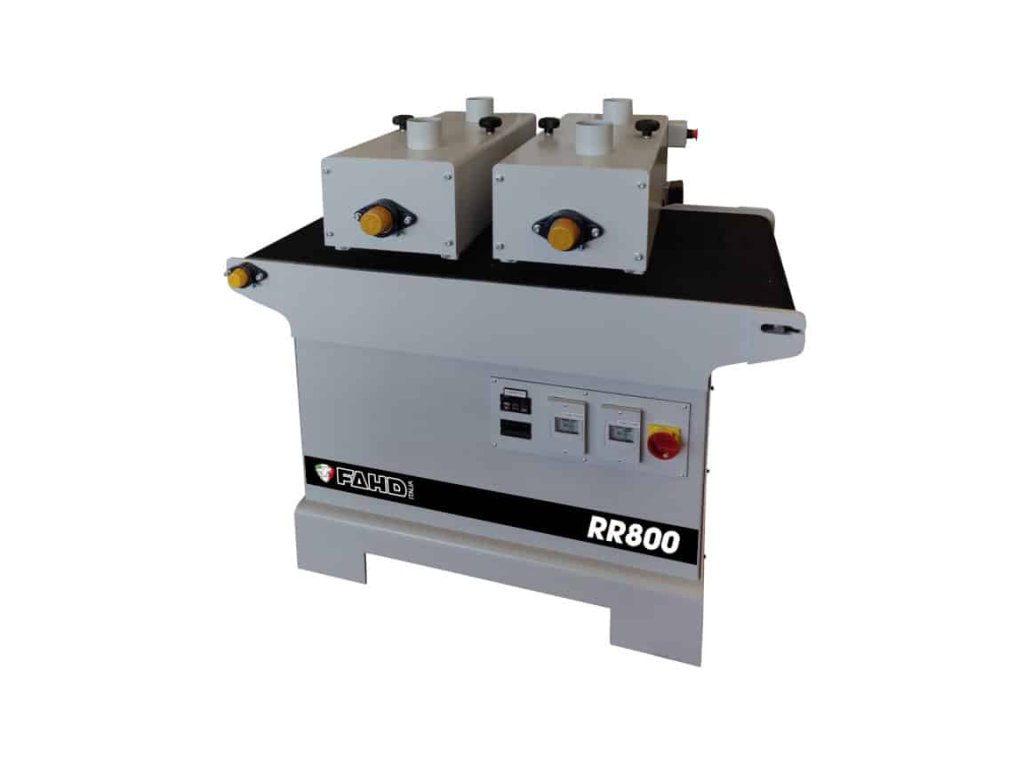

Kartáčovačka FAHD RR800

Kód: 829
Značka: FAHD
0 Kč 0 Kč včetně DPH
Kategorie: Kartáčovačky
RR 800

Brushing Machine RR 800

Technical data

Max working height mm 200
Max working length mm 250
Max working width mm 800-1600
Feed mat motor power kW 0,55
Brush motor power HP 7,5+7,5
Belt transmission N.2 V380
Feed speed mt/min 4:12
Brush speed rpm 1000
Brush diameter mm 210
Weight kg 950



  • Machine supplied without brushes
  • Rugged steel construction made entirely of high resistance
  • Feed mat with adjustable speed managed by electronic inverter
  • Brushes heads are mounted on precision guide to ensure maximun stability and accuracy
  • Brushes heads open on one side, with possibility to process very large pieces even to the field of the choosen machine
  • Independent rollers for each head, mounted on springs to ensure the stability of the workpiece during the process
  • Independent adjustments of the brushes, with mechanical indicator
  • Inverter with keypad on control panel to adjust the brushes speed and invertible direction of rotation
  • Brushes motor with belt drive
  • Nr.2 frontal flywheels
  • Nr.2 dust extraction hoods Ø 120 mm

UPON REQUEST



STEEL BRUSH





TYNEX BRUSH





BRUSH WITH ABRASIVE BRISTLES





SWITCH FOR REVERSE ROTATION (RIGHT-LEFT) APPLIED TO THE 2ND GROUP





POWERED LIFTING OF THE BRUSH UNIT
